All-in-One Solution
Your Eyes On The Road
AIO-5 Lite Motorcycle Smart Riding System
*Note: For instant BMW compatibility, please consider our AIO-5 Play for BMW model.
Founded in April 2020 by a passionate crew of motorcycle enthusiasts with deep roots in electronic product manufacturing, CHIGEE was born from a collective love of riding and a shared mission to elevate the motorcycling experience.
The genesis of our groundbreaking AIO-5 Lite traces back to 2021 when our founders, Wells and Haus, avid motorcyclists themselves, felt the pain of existing navigation and recording solutions falling short during their daily rides. Fueled by this frustration, they embarked on an ambitious three-year journey to develop a product that would truly cater to the needs of riders like themselves.
Driving our vision is a dynamic development team with over 30% comprising engineering and technical experts. Within this talented group, we boast over 20 key developers specializing in Linux, Android, electronic circuits, and structural design – a formidable force dedicated to pushing boundaries.
We proudly unveil the AIO-5 Lite, the culmination of our unwavering commitment to redefine the game and provide riders with a revolutionary solution for their journeys. Born from a rider's perspective and forged by technical prowess, the AIO-5 Lite is poised to set a new standard in the motorcycle accessories realm.
In the scorching summer of 2023, our Chigee team embarked on an audacious motorcycle expedition, conquering a staggering 20,000 kilometers across the enchanting landscapes of Tibet. This awe-inspiring journey served as an extensive field test for the AIO-5 Lite, pushing its capabilities to the absolute limit amidst challenging terrains and ever-changing weather conditions.
We've listened to global feedback, prototyped, and refined "AIO-5 Lite" based on insights from riders in China, Japan, the USA, Philippines, Germany, and Spain.
But we don't stop there; continuous optimization and wireless updates set us apart. Your opinions matter – share your thoughts on features and stability. Join our collaborative journey, where your ideas shape an extraordinary product. Be more than a backer; become a vital part of our community!
R&D Process
Creating a completely new product is a intricate and demanding undertaking. Yet, through the combined dedication of our development team, we have accomplished success.
Parameters of AIO-5 Lite
| Working voltage: 12-18V/DC | Screen size: 5 inches |
| Working temperature: -20-65°C | LCD Material: IPS |
| Product Dimensions: 136.2*78.8*26.8mm | Brightness: 1000Nit |
| Weight: 310g | Peak Brightness: 1200Nit |
| Waterproof Rating: IP67 | Automatic Brightness: Supported |
| RAM: 4GB | Touch: Supported |
| Built-in Storage: 32GB EMMC | WIFI: Supports 2.4/5.8G |
| Operating System: CGOS(Linux) | GPS: External 10HZ GPS Module Supported GPS + BeiDou Satellite |
| SD Card Support: 256GB | |
| Bluetooth 1: Supports BLE 5.0 for connection to mobile | |
| Bluetooth 2:Supports BLE50 for connecting headphones and devices |
Camera Parameters
| Image Sensor: IMX307 | Resolution: 1920*1080 |
| Frame rate: 30FPS | Lens Angle: D136.6° (H115.6°, V61.6°) |
| Lens Structure: 2 Glass + 4 Plastic + 1 IR-CUT f=3.0mm | Does it support HDR: Yes. |
| Camera size: 45*35*56mm | Working Voltage: 5V |
| Camera Weight: 80g | |
| Front Camera Cable Length: 1M | |
| Rear Camera Cable Length: 2.5m |
Package
| AIO-5 Lite | Camera x 2 | GPS Module |
| Mounting Bracket | Variable-Radius Ring aperture: Suitable for 22-32mm pipe diameter |
Buckle Clip x 2 |
| Ball Joint Component | Power Cable | Magic Strap x 2 |
| User's manual | Installation Tools |
Size
Eye-catching features
Wireless Screen Mirroring
Intelligent cycling all the way
Driving Recording

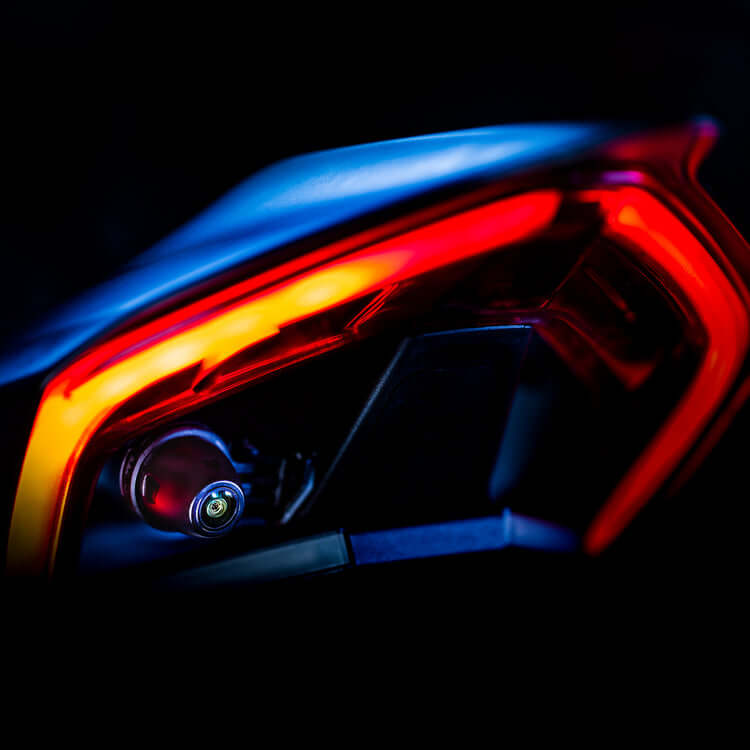

1080P Front & Rear Camera at 30FPS

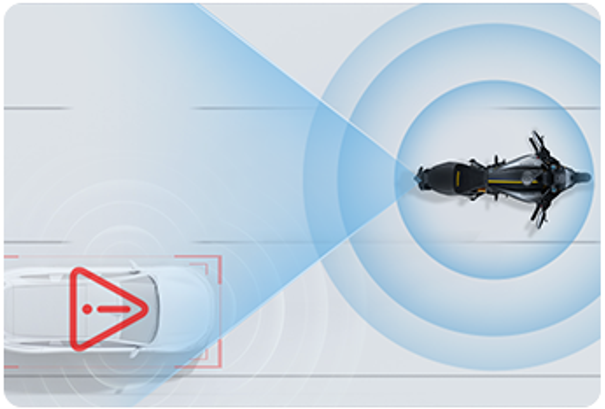

Blind Spot Detection
AI visual algorithm
Message Notifications
Instantly push information (For IOS)

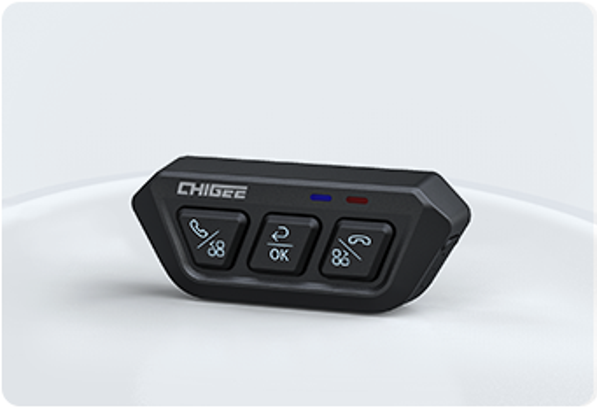

Wireless Remote Control
Everything is at your fingertips ※Optional

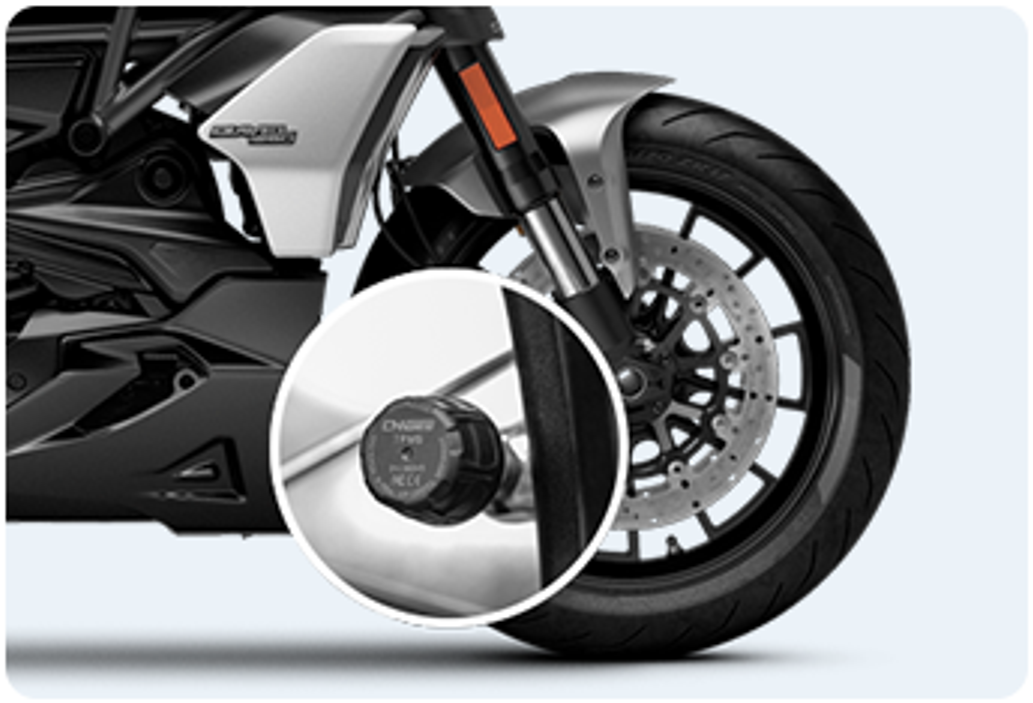

Tire Pressure Sensor
Real-time monitoring ※Optional
Future of Riding

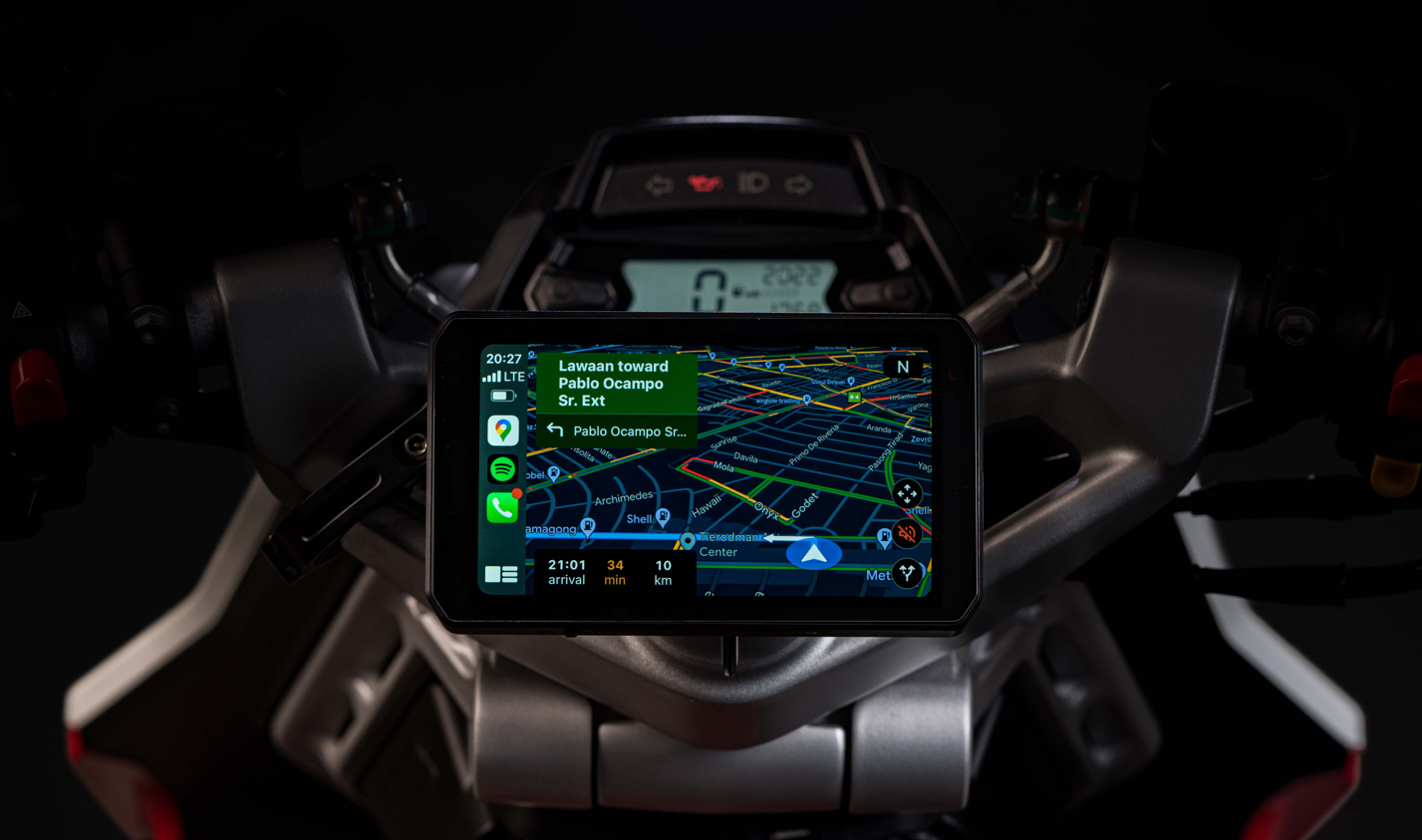

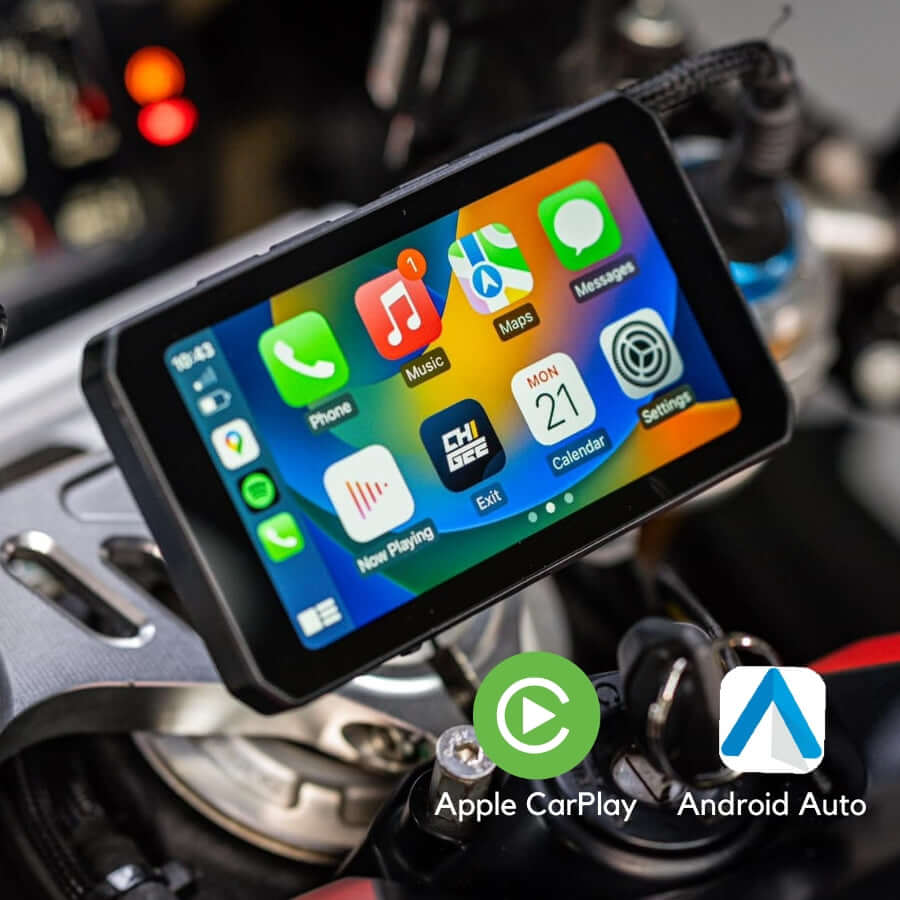

Bring Apple CarPlay / Android Auto to Your Bike
Real-time Maps
Stream Online Songs
Voice control(IOS Only) & Manual search
Phone Call Answering
Message Notifications
Silky Smooth, Just Like Your Phone
Discover AIO-5 lite's Uniqueness
5-inch Fully Laminated Screen
Insulated from Dust and Vapor
Boosted Processor and RAM

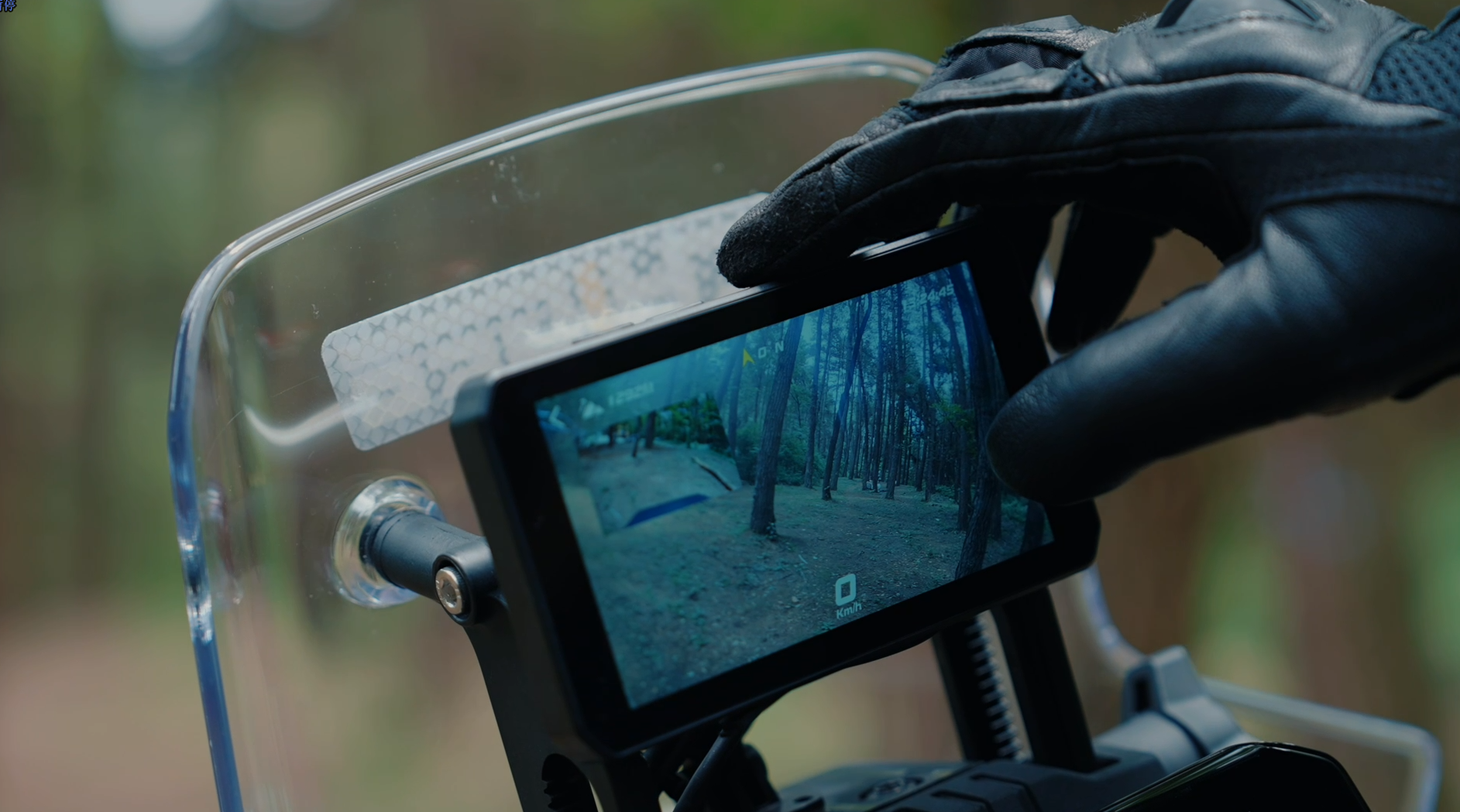

Intuitive Touch
5G Wi-Fi

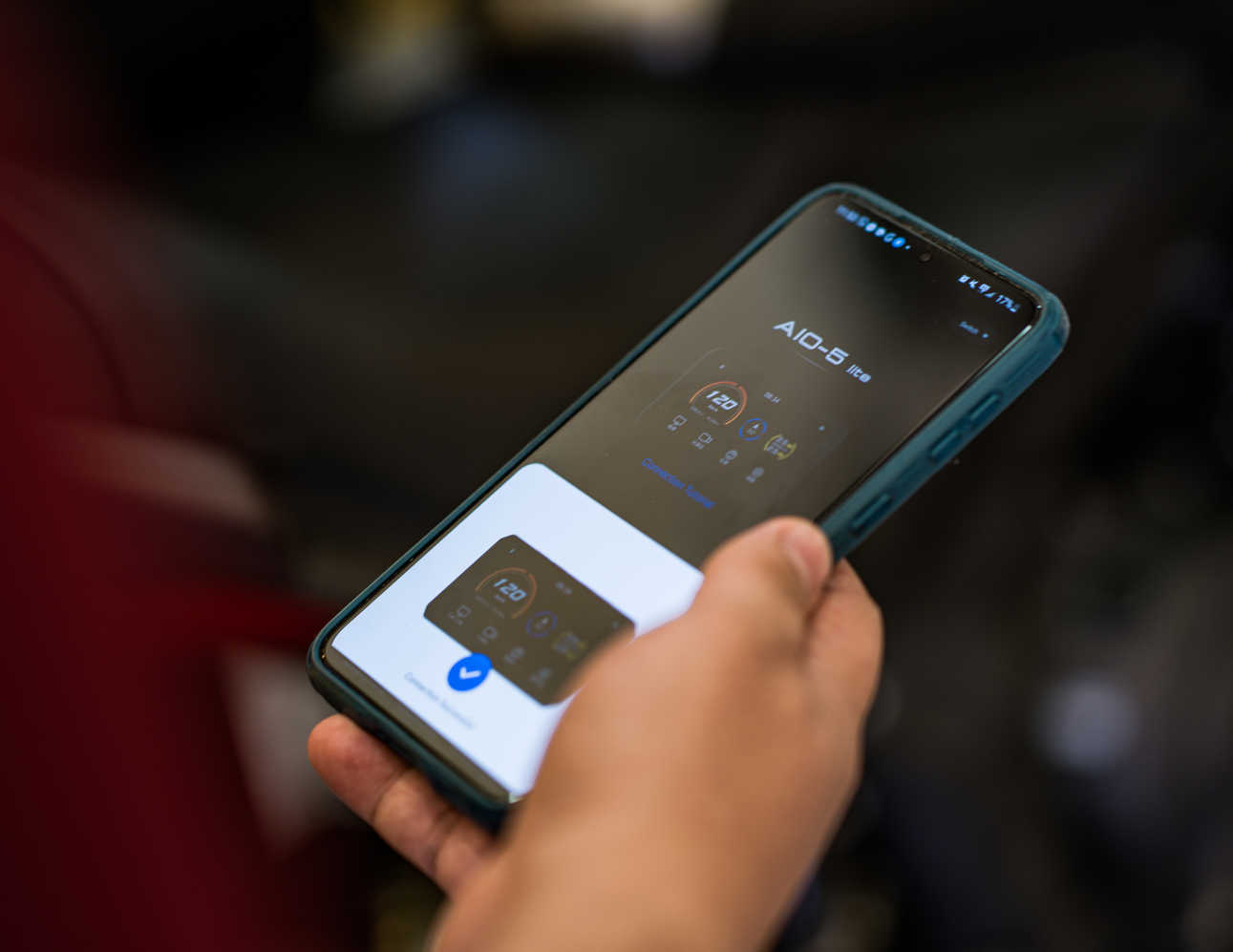

Video Transfer Speeds Exceeding 10MB/s! Get your ride recordings straight to your smartphone with our app for easy sharing or on-the-go viewing.
Updates over the air
Experience the future with seamless over-the-air updates! Elevate your device effortlessly, ensuring you always have the latest features and enhancements.
Motorcycle-specific design
Peak Brightness of 1200cd/m²
Illuminate your world with vibrant clarity
Robust Structural Stability
Aluminum alloy frame with 3-axis shock absorption
Dual-record Storage
32GB built-in storage + expandable up to 256GB
IP67 Waterproof
For Host and two camera
Built for Extreme Temp
Ranging from -20°C to 65°C (-4°F~149°F)
Theft-Proof Design
Custom screw mount and integrated wiring
Sentry Mode
AIO-5 Lite monitors the motorcycle status when parked automatically, and if the vehicle is subject to vibration, it will automatically record videos from the front and rear cameras.
Handlebar Mount (Included)
Suitable for 22-32mm pipe diameter
Mounted yesterday on a Kavasaki Ninja 1000sx 2023. Excellent result. Only an optional shorter support for the front chamber would be needed to prevent it from banging against the mudguard.
Awesome quality and orbit shipment
I saw the A1O lite reviewed on Youtube, I finally got one after researching it. I also purchased the TPMS valve caps. This device is so awesome and fits the bike so good. For the Softail FXLRS/T you will have to get creative with the wire routing. The hardest part was accessing the battery for the bike. Once that was taken care of, I routed the power wire under the tank cover. You won’t even need to take off the Gas tank. Connecting the yellow wire took a bit of cutting and some jerry rigging because the wiring was all hidden so well by the factory. I took it out for a ride and I was really happy with it. It loads wireless Carplay so fast! Its so responsive and every button is easy to access. Make sure you get the correct SD card because you can’t update it without that. AIO lite really made my bike way better! I still haven’t hooked the cameras up. I have to plan the wire routing for that too. Definitely worth every penny! Get one! Or two!
Ottimo prodotto
the experience was very good. All items arrived ok
 |  XR-2 Motorcycle Smart Riding DashcamUS$389.00 View details |  AIO-5 Play Smart Riding DisplayUS$399.99 View details | |
|---|---|---|---|
| Feature | |||
Brief |
|
|
|
Purpose |
|
|
|
Power Supply Battery power essential for camera operation. For enhanced dash cam features: hardwire to bike battery is a must.
|
|
|
|
Driving Recording Front and rear cameras included. Dashcam ensures safety, crucial in emergencies. Use Chigee Go app to wirelessly download and share videos.
|
|
|
|
Blind Spot Detection Alerts driver to vehicles in hard-to-see areas.
|
|
|
|
Parking Monitoring Detects and records incidents while the motorcycle is parked, using both front and rear cameras.
|
|
|
|
Anti-theft Alarm Sound alerts(basic safety feature): hardwire connection needed.
|
|
|
|
TPMS Tire Pressure Monitoring System. Alerts rider to under-inflated tires.
|
|
|
|
OBD On-Board Diagnostics.
|
|
|
|
Wonder Wheel Control Multi-functional control dial for easy navigation of infotainment system.
|
|
|
|
Wireless Remote Answer calls, switch apps, navigate pages, and more.
|
|
|
|
Trip log Track and review your journey details, including distance, time, route information, and more.
|
|
|
|
Sunrise and Sunset Display Shows daily sunrise and sunset times for your location
|
|
|
|
Over-the-air Update Wirelessly receive and install software upgrades remotely.
|
|
|
|
| Wireless Phone Mirroring | |||
Apple CarPlay CarPlay is a smarter, safer way to use your iPhone while you drive.
|
|
|
|
Android Auto Connect your phone to your car display—your Android apps show up onscreen, just like that.
|
|
|
|
Navigation Embark on a journey with real-time maps, effortlessly synced to your map app.
|
|
|
|
Music Streaming Effortlessly sync with playlists as you cruise.
|
|
|
|
Phone Call Answering No more missing important calls! Answer seamlessly without removing gloves or helmets.
|
|
|
|
Voice Control (iOS) Set destinations, answer calls, or manage your music—all through seamless voice commands, ensuring a safer and more focused ride.
|
|
|
|
Notifications (iOS) Receive and check messages with ease.
|
|
|
|
Mirroring Frame Rate Supports up to 60fps for smooth casting. Switch between 30fps and 60fps in the settings.
|
|
|
|
Auto Reconnect Set up once, ride hassle-free forever! Our device seamlessly wireless mirroring every time you start your engine, eliminating pre-ride setup.
|
|
|
|
More info | |||
| General Specs | |||
Processor Enhanced CPU offering improved performance over competitors' models.
|
|
|
|
Internal Storage |
|
|
|
RAM A larger RAM means better performance, faster multitasking, and the ability to run more demanding applications smoothly.
|
|
|
|
Operating System CG OS is Chigee's proprietary, Linux-based system.
|
|
|
|
SD Card Expansion |
|
|
|
WLAN |
|
|
|
Bluetooth |
|
|
|
Speaker |
|
|
|
Bluetooth headset Connect your headset directly to the phone for a more immediate audio interaction without needing to route through the AIO-5.
|
|
|
|
| Display Specs | |||
Size |
|
|
|
Weight |
|
|
|
Resolution |
|
|
|
Water Resistant Dust-tight and water-resistant ratings. IP67 survives 1m submersion; IP68 exceeds this.
|
|
|
|
Peak Brightness Maximum screen luminance. Ensures clear visibility in bright sunlight.
|
|
|
|
Automatic Brightness |
|
|
|
Screen Lock Button Keeps display on and touch-resistant during rain, preventing accidental inputs from water droplets.
|
|
|
|
Glove Operation Touch screen remains responsive when wearing gloves.
|
|
|
|
Operating Temperature Device designed to function reliably in extreme weather conditions, from very cold to very hot.
|
|
|
|
| Installation | |||
GPS |
|
|
|
Quick release Instantly detach or unfasten
|
|
|
|
Installation |
|
|
|
Mounting size of ball head component
|
|
|
|
Optional Bracket |
|
|
|
Output Cables of Unit |
|
|
|
Length of Power Cable |
|
|
|
Length of Front Camera |
|
|
|
Length of Rear Camera |
|
|
|
| Drive Recorder | |||
Cameras |
|
|
|
Resolution |
|
|
|
Video Frame rate Smooth playback
|
|
|
|
Video Download & Share Easily download and share your recorded videos with friends or on social media.
|
|
|
|
Fusion Output Activating this feature saves front and rear camera footage as a single video file, displaying one large and one small view.
|
|
|
|
Data Overlay Choose data to overlay on video files: Time, Speed, or Latitude/Longitude. For more options, use the CHIGG GO APP.
|
|
|
|
Video Display Mirroring Corrects preview image for reversed views or sets the rear camera to function as a rearview mirror.
|
|
|
|
Recording Time Set the recording duration of each video clip for the Motorcycle Dash
Cam, available options: 1 minute, 2 minutes, 3 minutes.
|
|
|
|
Collision Lock Secures recordings during a collision, preventing overwriting for reliable evidence.
|
|
|
|
Sound Recording Adjustable microphone volume.
|
|
|
|
Parking Monitoring When the motorcycle detects vibrations while parked, it silently records a 30-second video. Adjust sensitivity settings to High, Medium, or Low.
|
|
|
|
Power-off Data Retention Retains data after unexpected power-off.
|
|
|
|
